SPECIFICATIONS

Brand Name: YiYimerci

Choice: yes

Compatible Brand/Model: Nintendo

Compatible Nintendo Model: GAMEBOY

Function 1: Need not to cut the shell

Function 2: Support for GB

High-concerned chemical: None

LCD screen: for nintendo accessories

Model Number: 2.5inch Point-to-Point Grayscale LCD Screen Kits for GB DMG

Origin: Mainland China

Screen size: 2.5'' Original Size

gb screen: gb screen light

semi_Choice: yes

Original Size Grayscale IPS LCD Screen Kits for Nintend GameBoy GB DMG Dot-by-dot Display Highlight Brightness LCD Screen Kits

Product Introduction:

1. The 2.5 inch grayscale screen is the same size as the original screen.

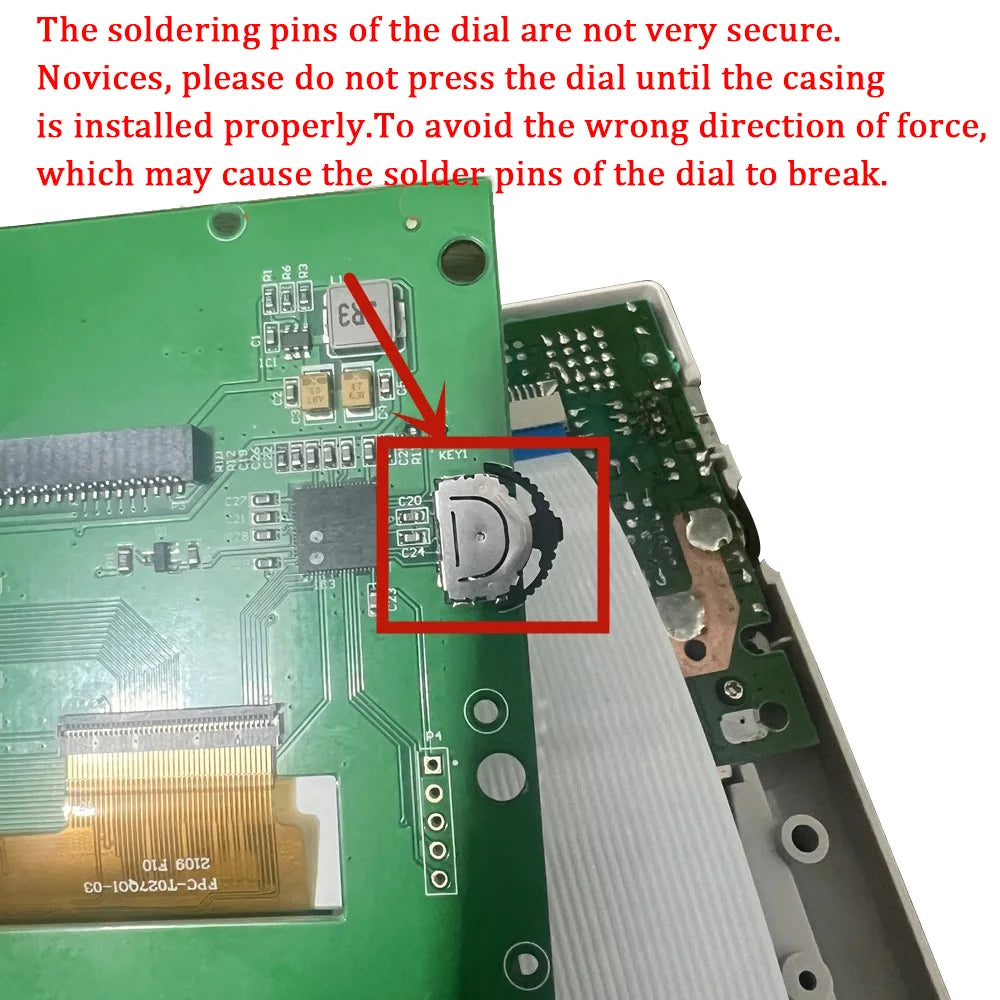

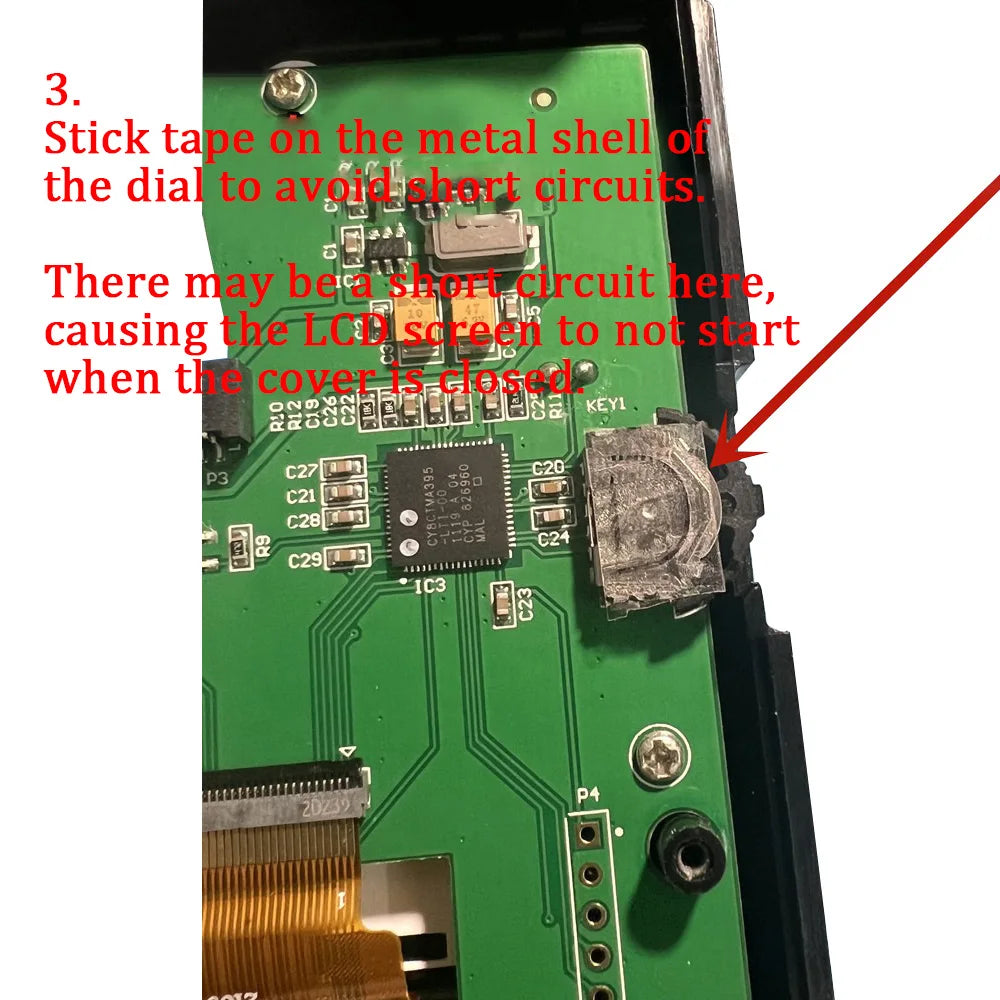

2. Press the dial once to adjust the brightness, and continue pressing once to adjust the contrast.

Notes:

Disadvantage: This LCD response speed is 100 milliseconds slower than the original screen, so the ghosting is even more severe. Because of the backlight, the ghosting is even more pronounced. But It's still much better than Hong Kong Feng GBP.

Installation tutorial and precautions:

1. Do not squeeze the LCD screen. Do not pull or tug on the LCD screen cable. Do not wipe the LCD screen.

2. Please test before installation. We are not responsible for any LCD screen breakage after installation.

3. Be careful not to insert the cable in the same direction at both ends. Starting up once will burn the LCD screen motherboard.

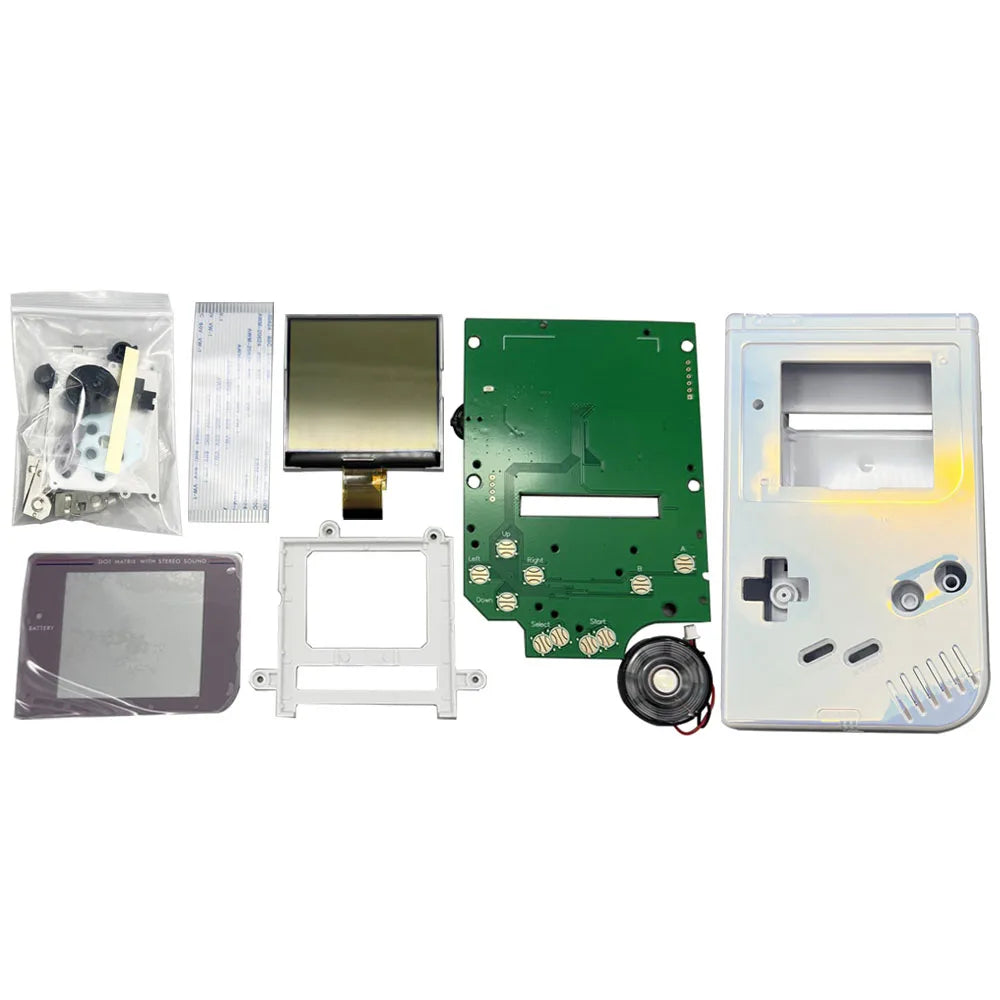

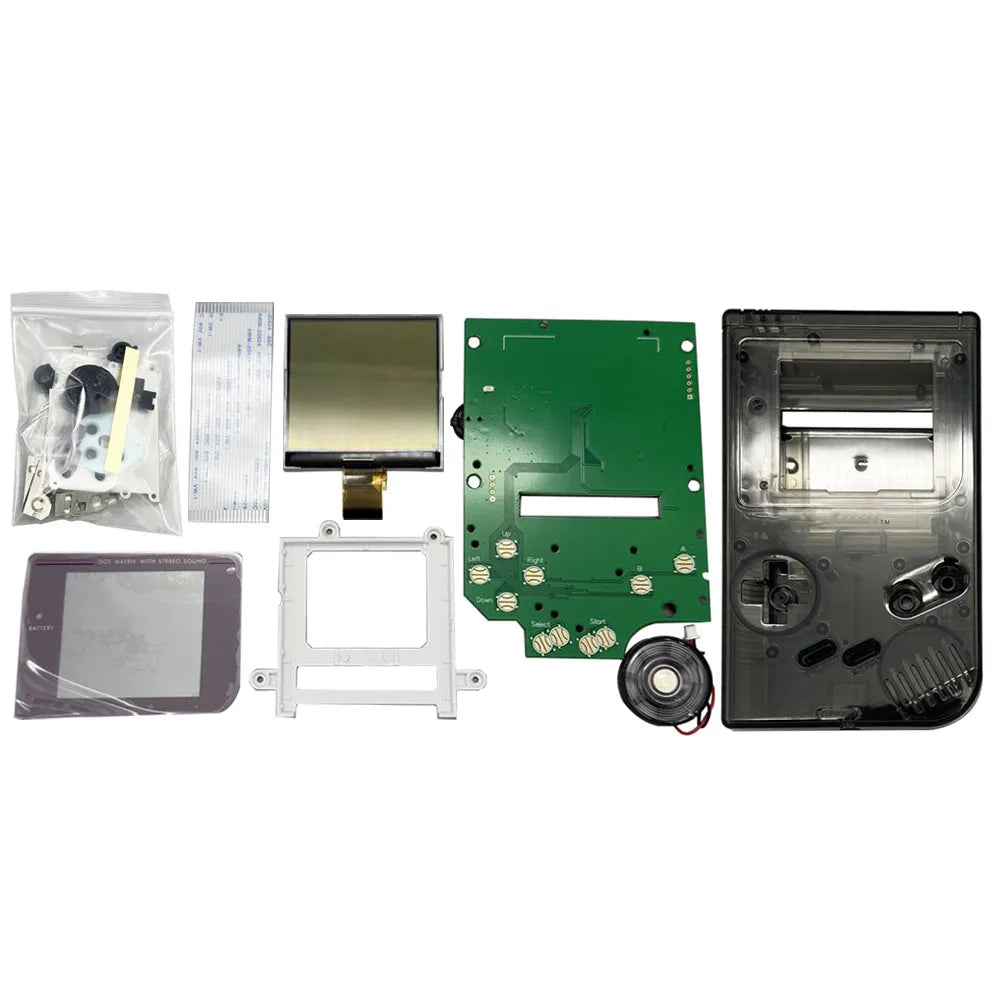

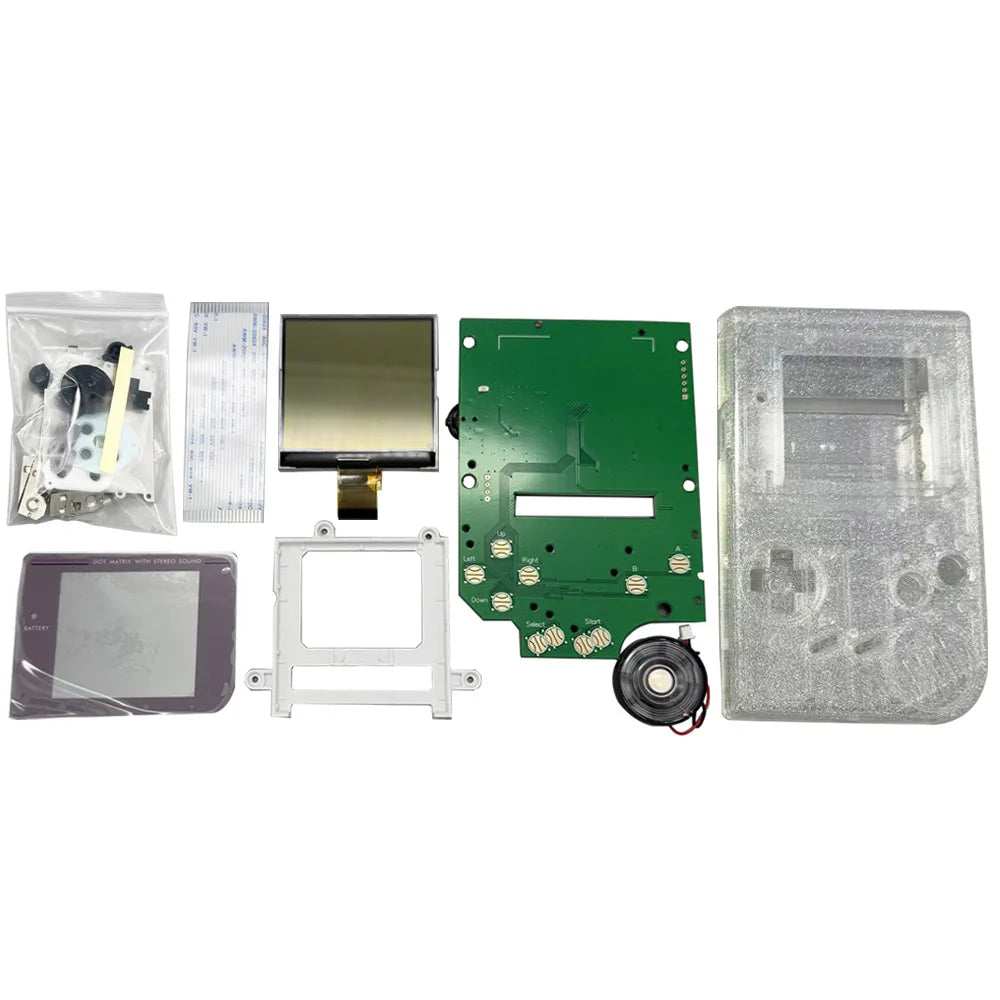

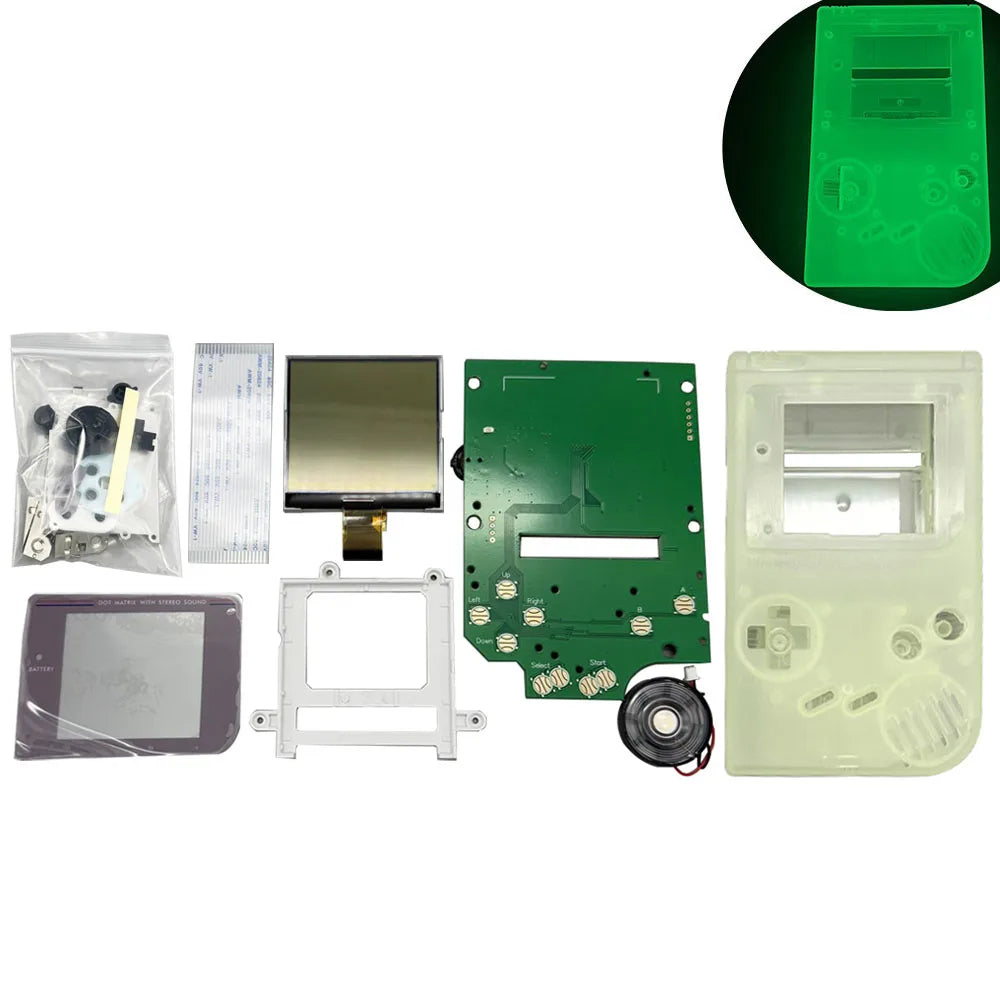

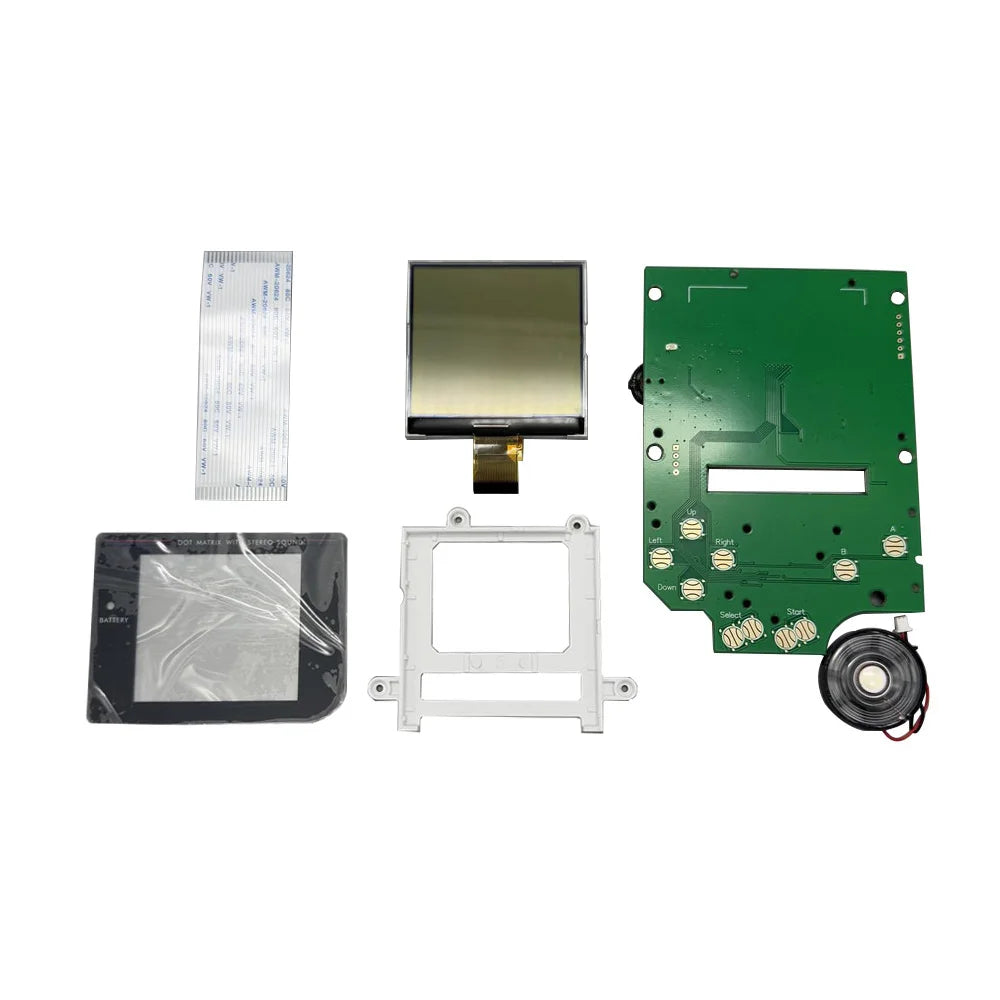

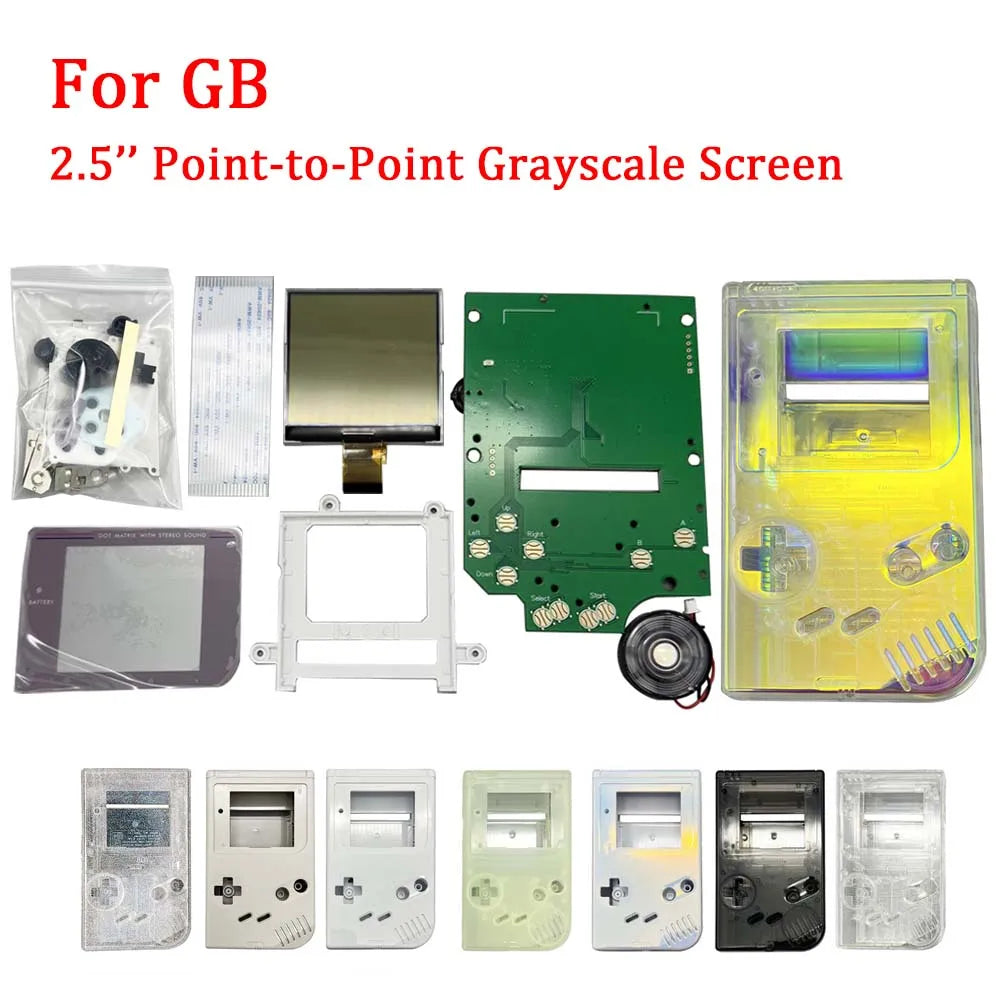

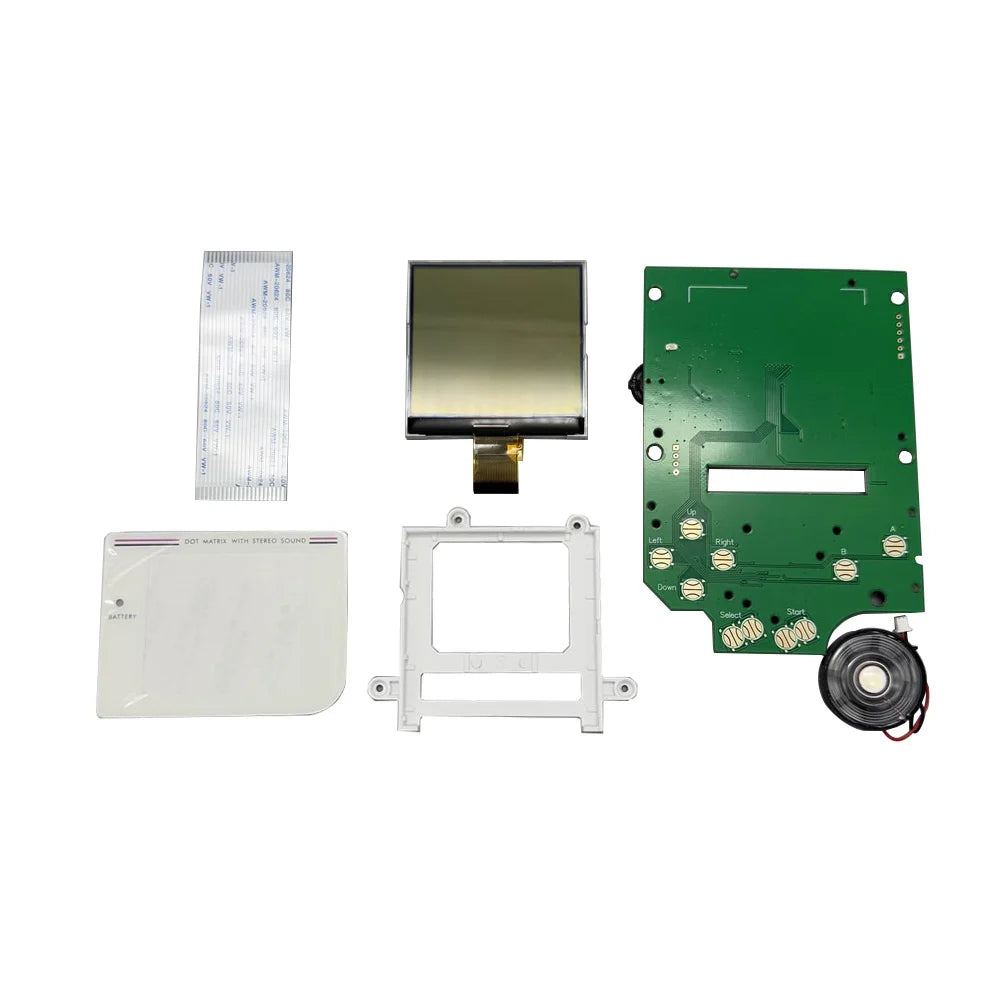

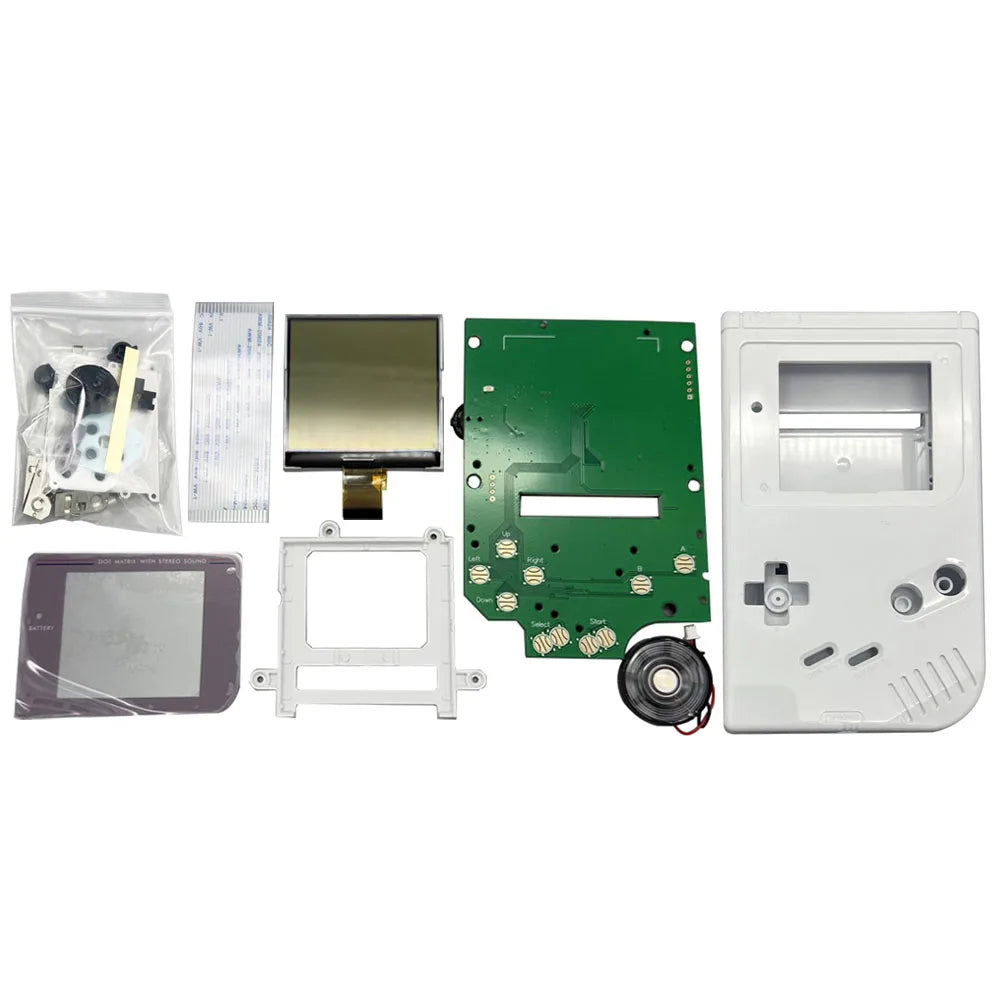

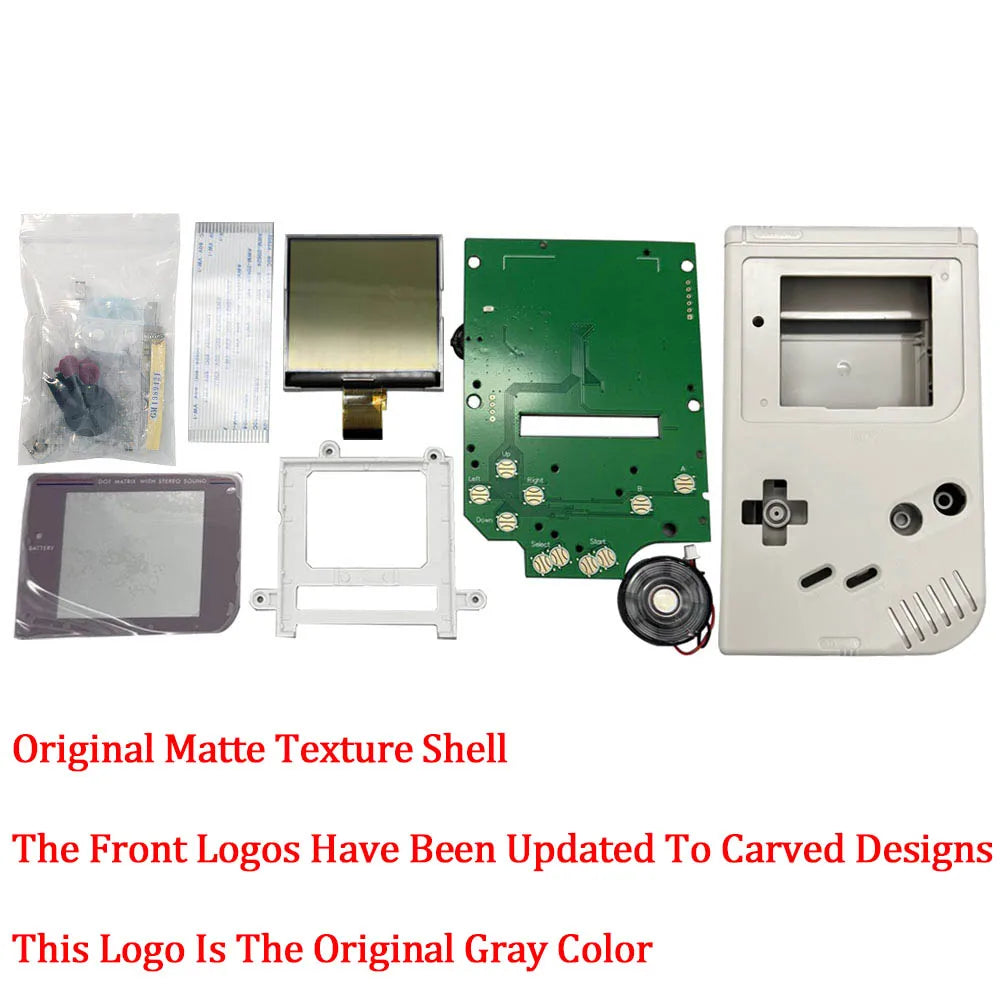

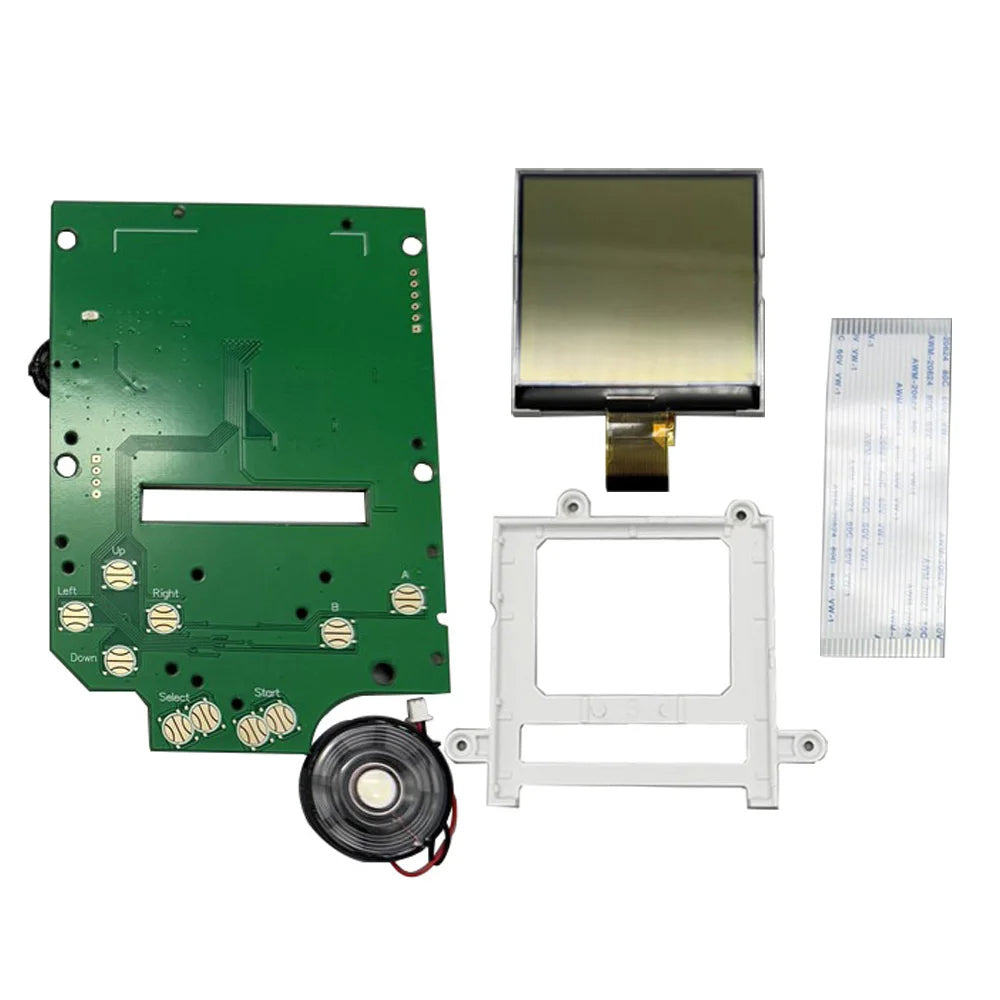

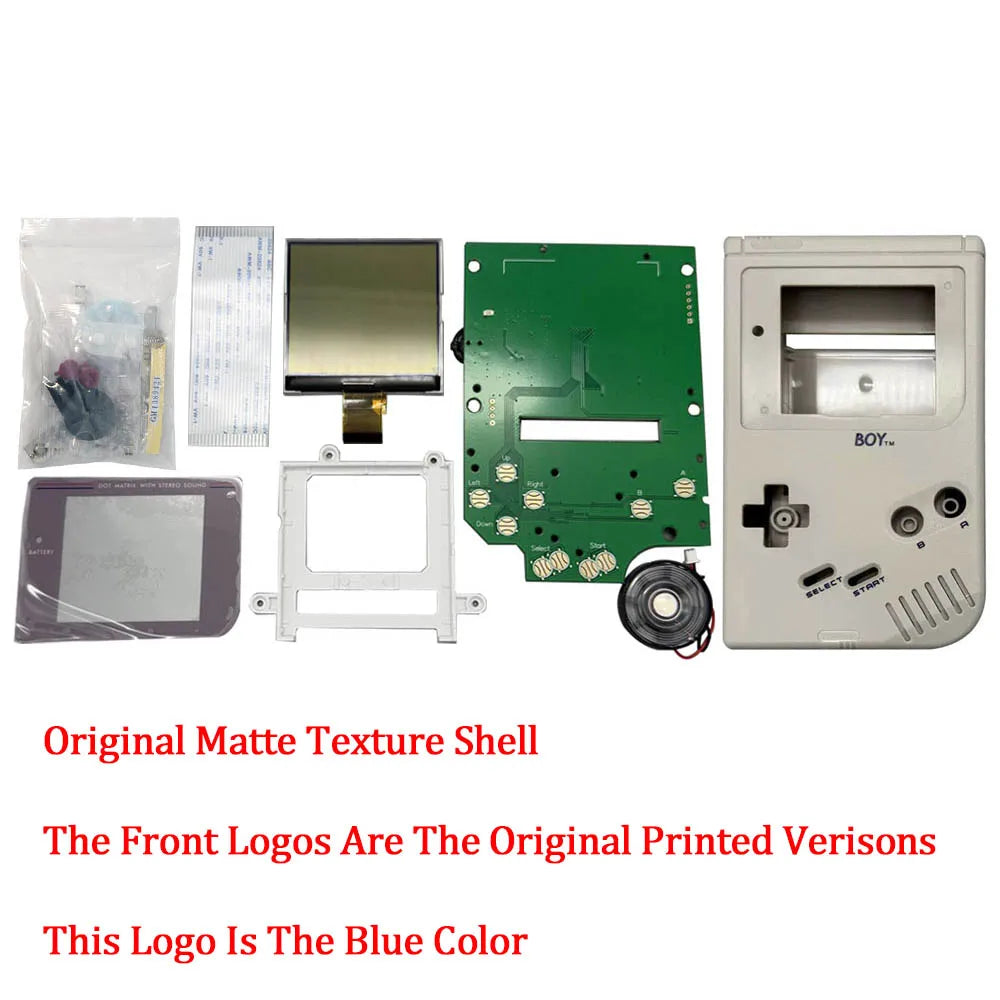

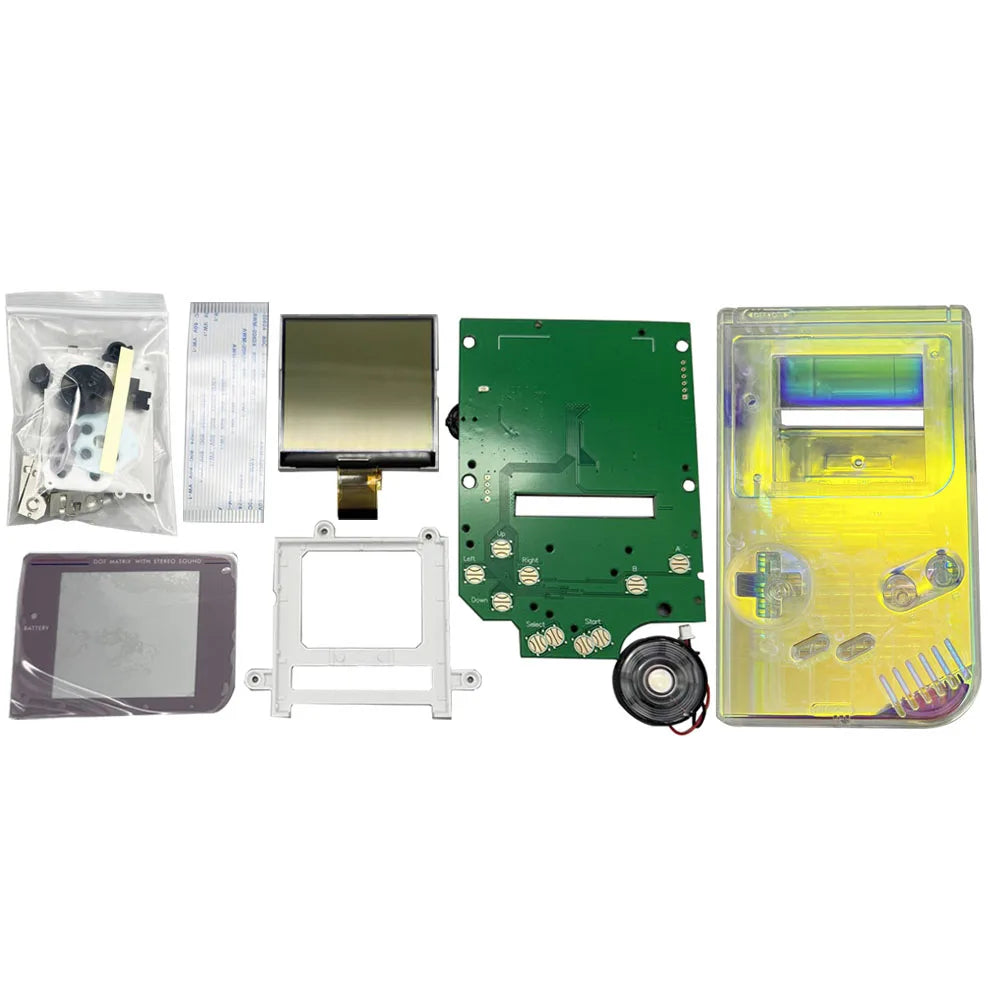

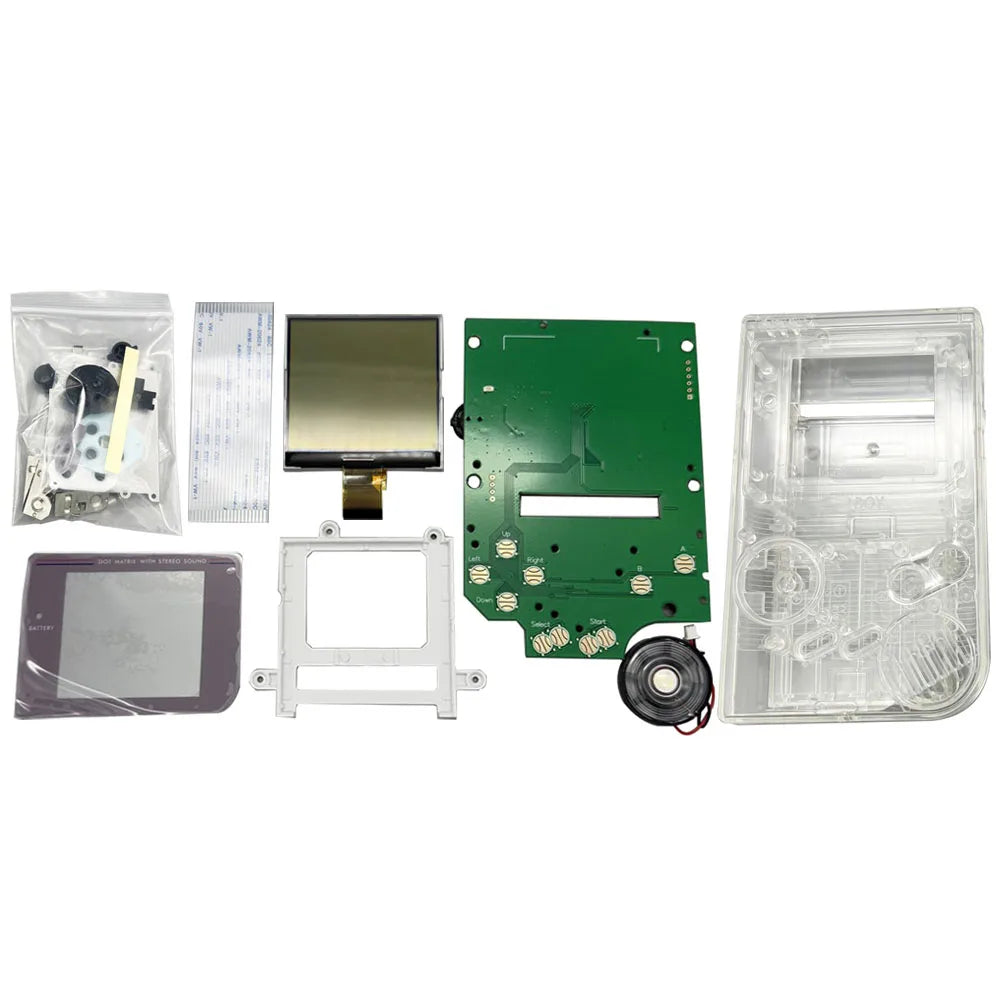

Product Included:

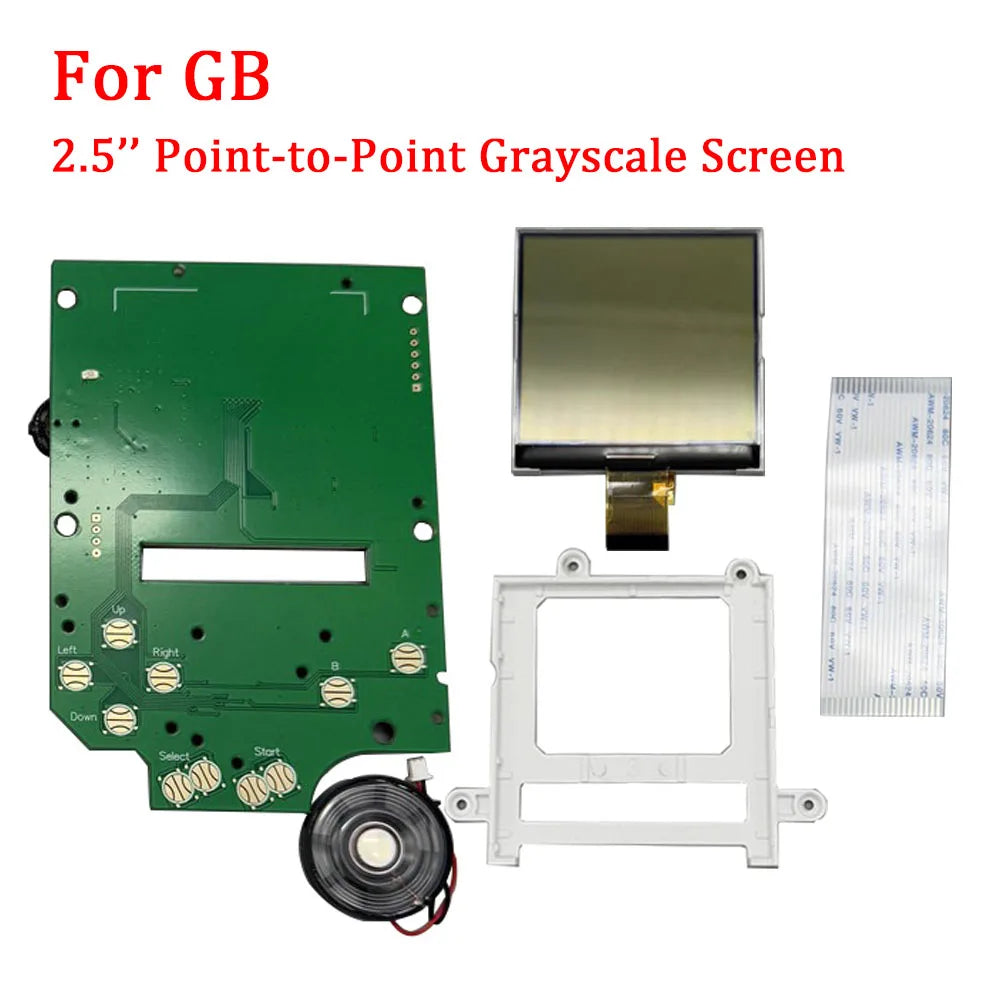

1x 2.5'' LCD Screen Kits

1x Glass Lens (Option)

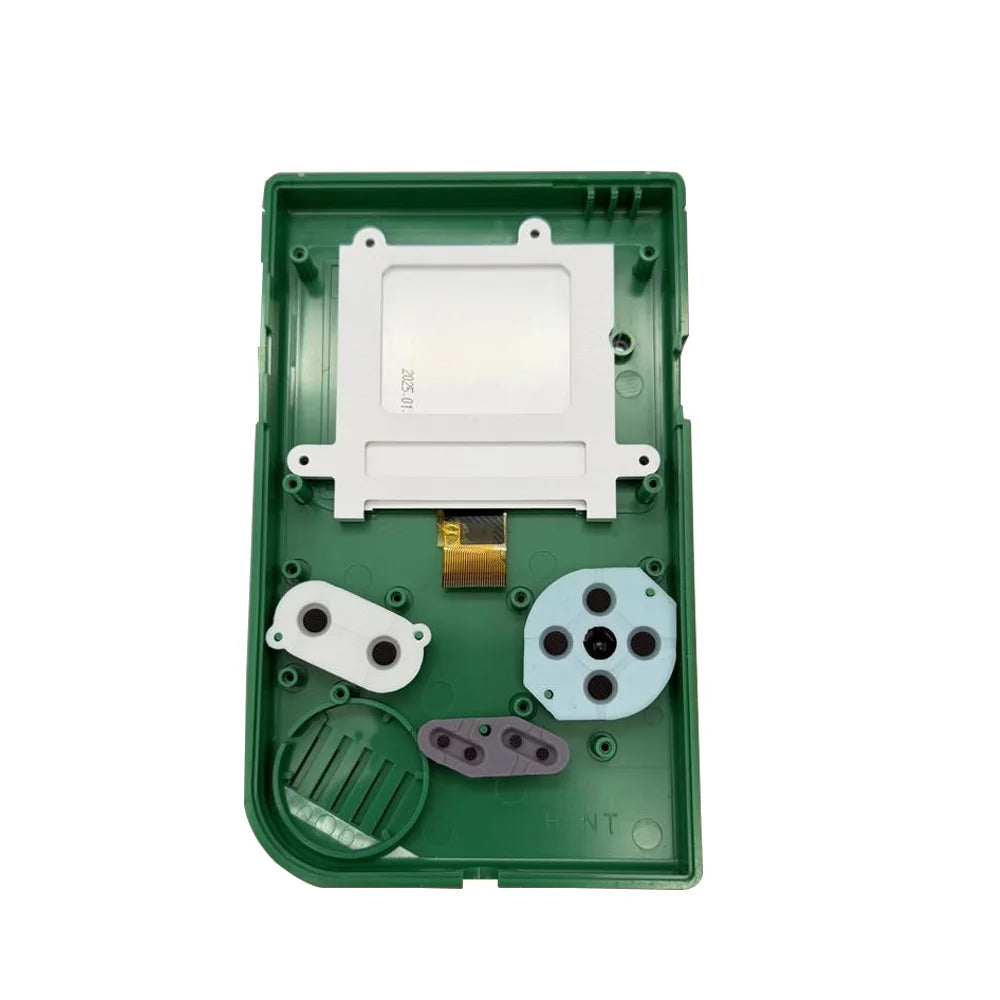

1x IPS Shell (Option)

1x Sticker (Option)

1 Set of Buttons (Option)

1 Set of Conductive Rubber Pads (Option)

1 Set of Screws (Option)

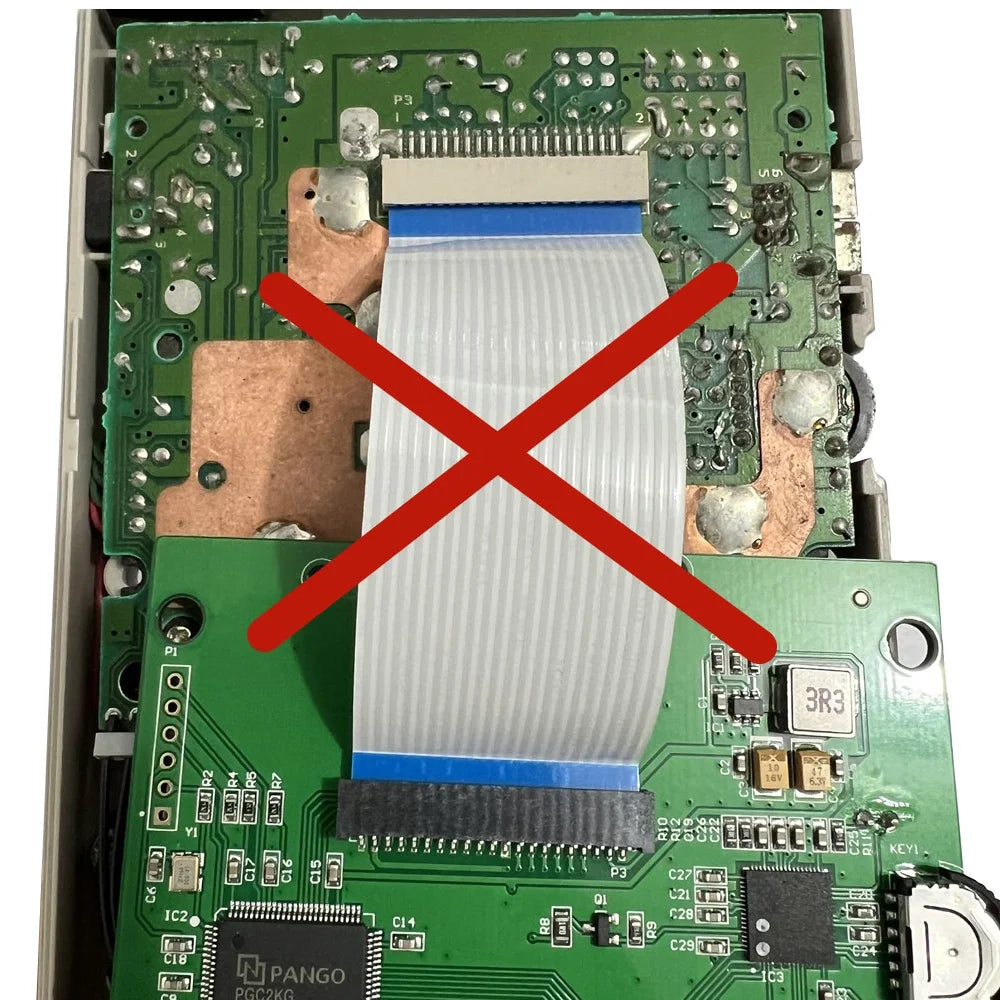

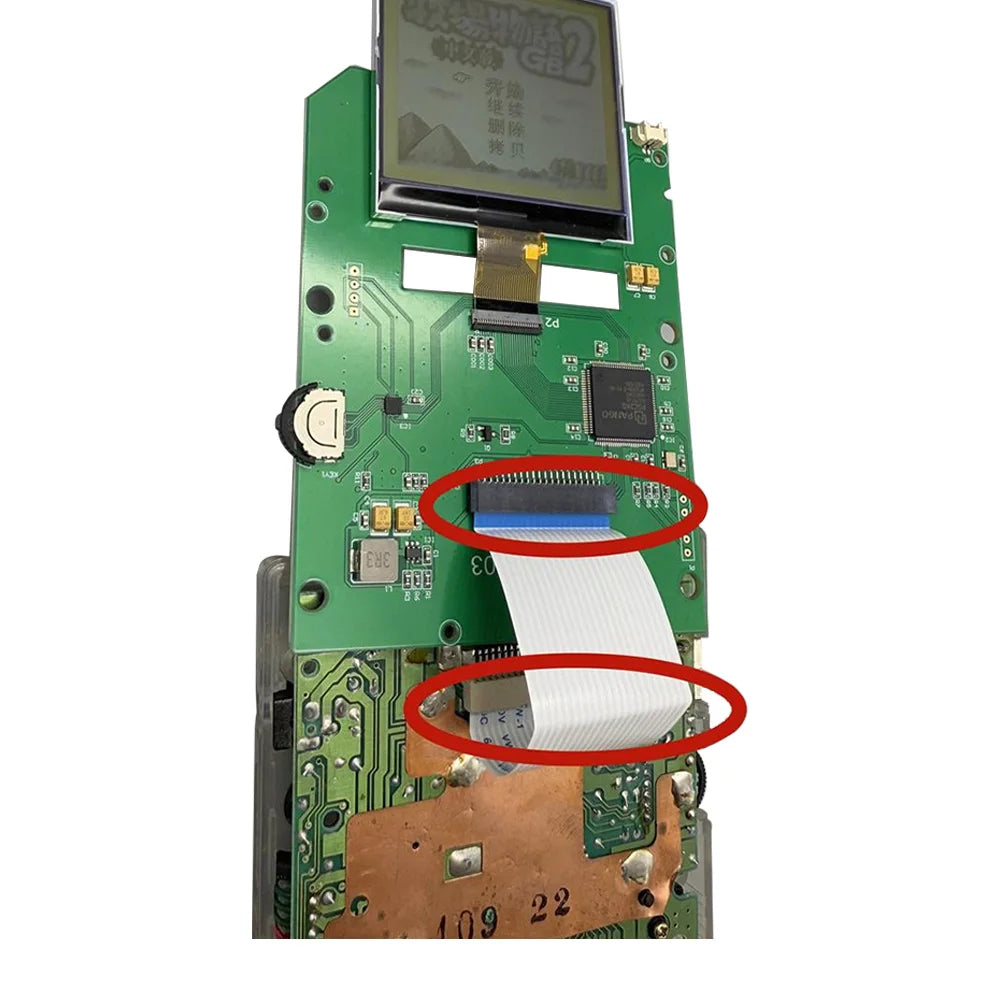

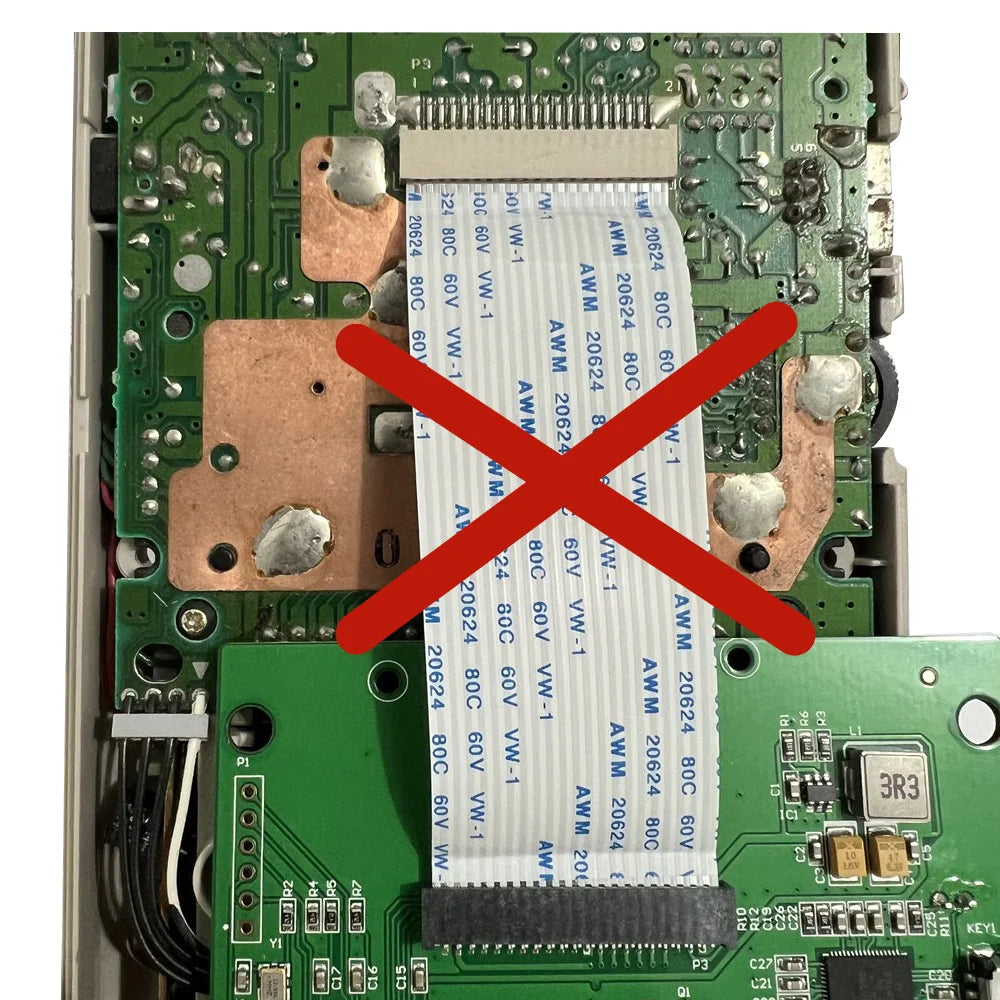

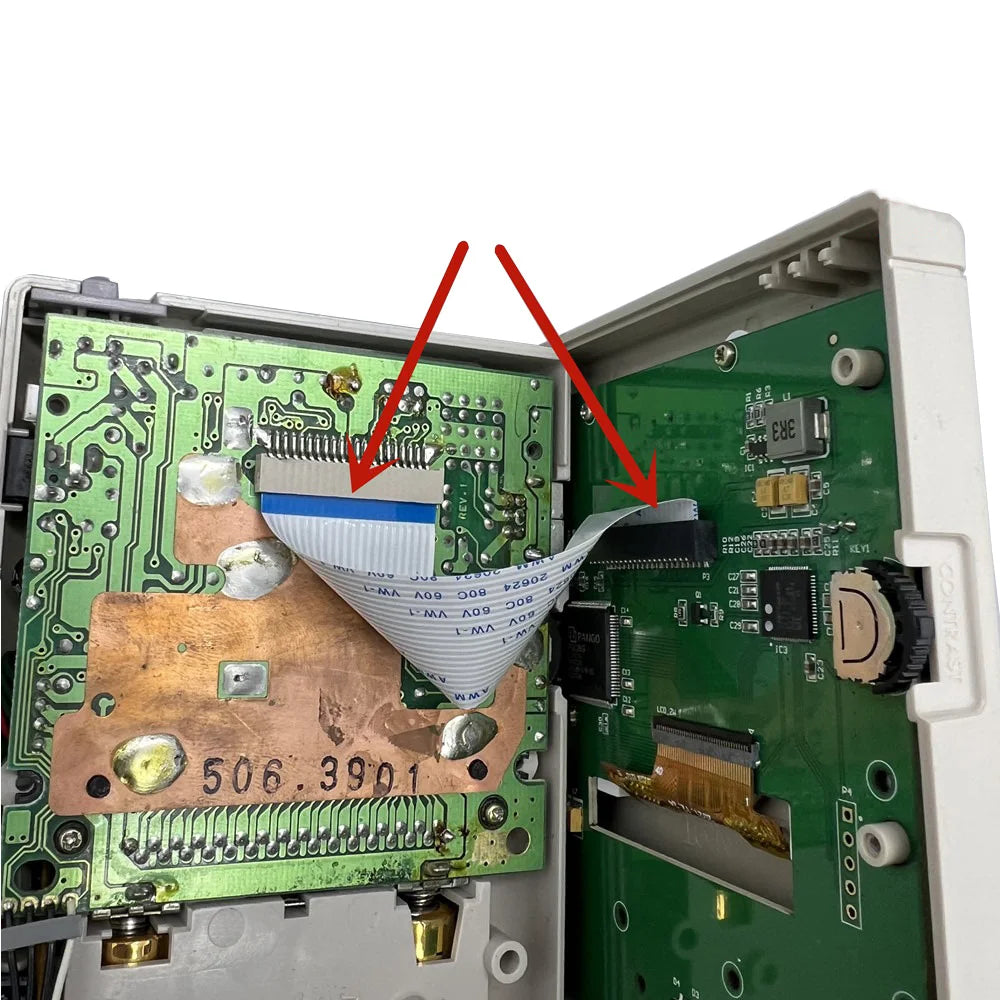

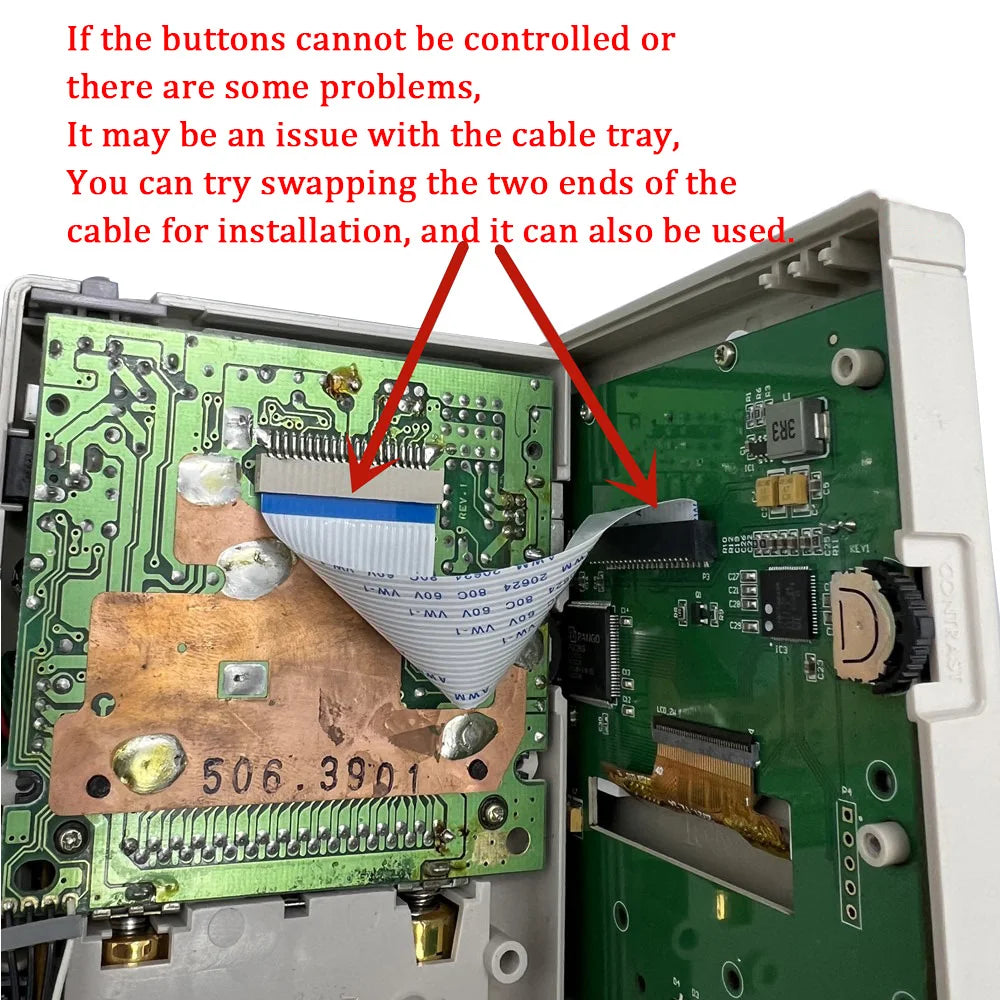

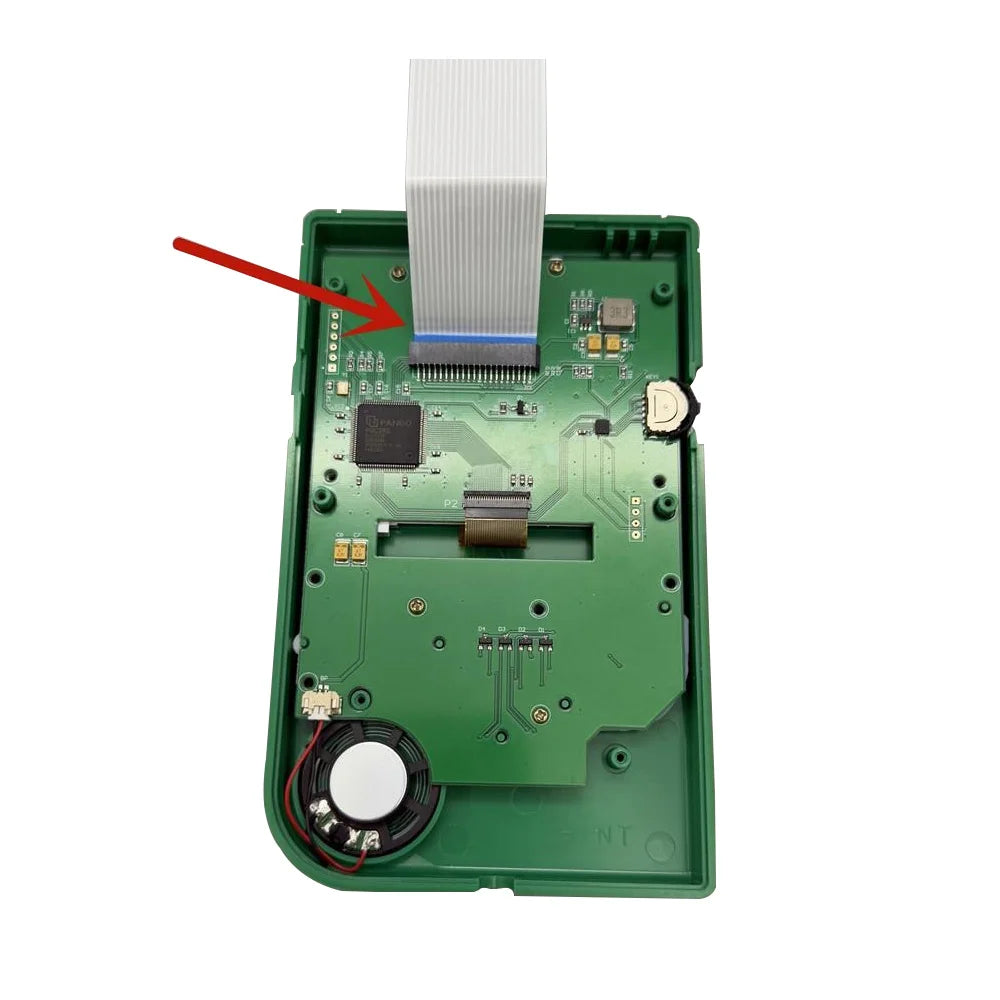

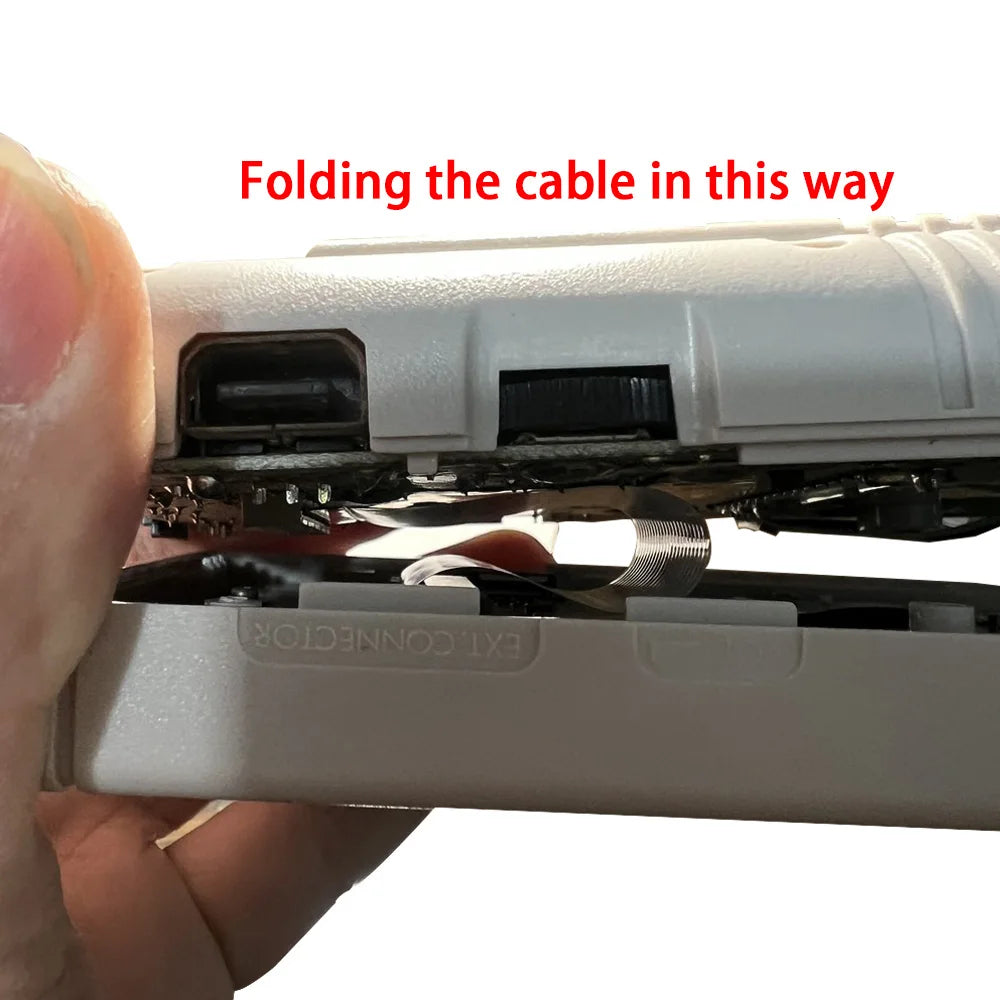

Note: When connecting this ribbon cable with the motherboard, pls do not insert both ends of the ribbon cable in the same direction into the socket. As shown below. Inserting a reverse cable like this will burn out the main chip of the LCD screen!!!

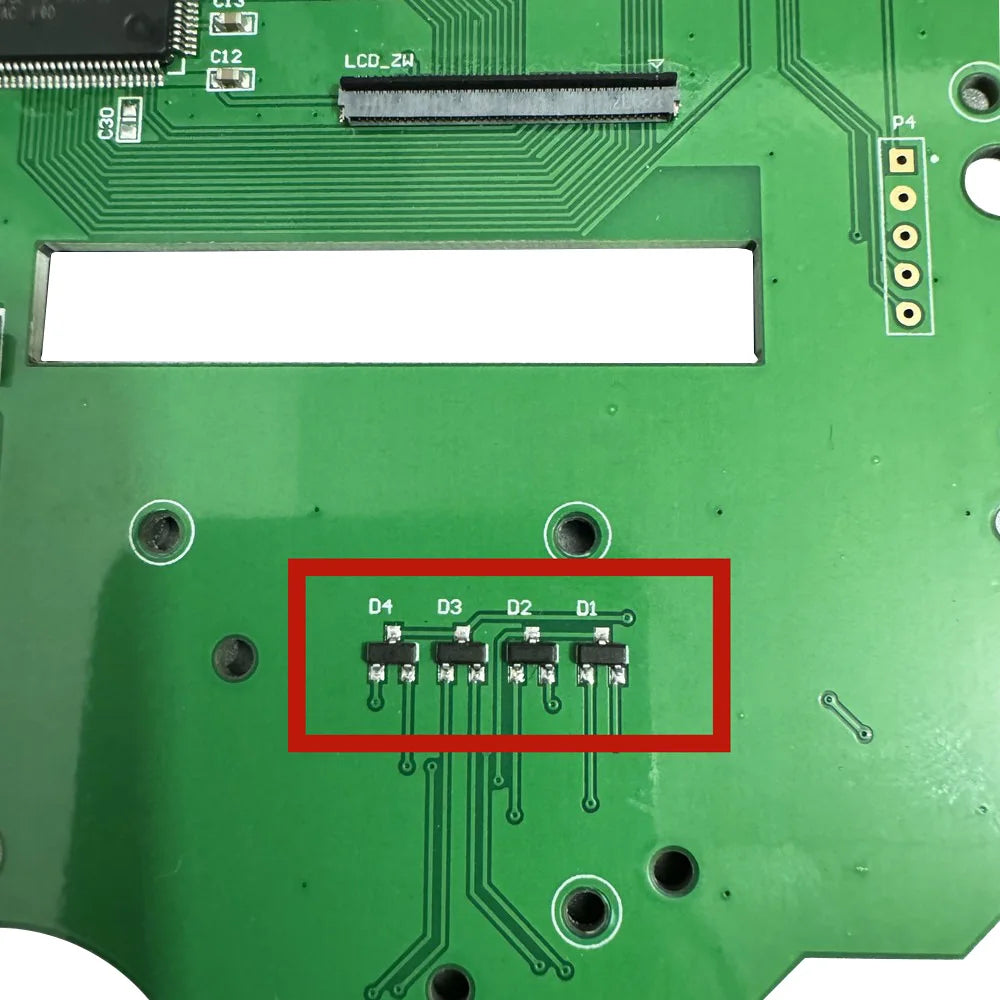

Notes: If there is a button malfunction problem, please make sure that your GB motherboard is functioning properly. Then check if the four transistors on the button board of the LCD screen are soldered properly.
